Swit PB-R160S+ V-Lock Battery 160 Wh Strong 1,5m drop off proof 14.4V, 160Wh capacity At least 150W/12A constant load 6A fast charging support 8-LED digital power indicators Sony / RED power info display Multiple circuit protections V-mount camera battery PB-R160S is a 160Wh V-mount battery, for Cine and ENG cameras, with latest designed dual housing heavy duty structure, drop-off proof. The battery supports high load, fast charging and digital power info display, which is an ideal power solution for field applications. Strong 1.5m Drop-off Proof PB-R160S has innovative dual housing structure: the inner cell cage and outer anti-shock housing with rubber covers. The new structure makes the battery quite strong, anti-shock. The battery can survive from 1.5 meters any angles drop-off. 160Wh / 11.1Ah Capacity Consists of 18pcs high class 18650 battery cells, and reaches 160Wh / 11.1Ah high capacity, which is the largest capacity to board to airplane.Can run approx 6 hours for normal ENG cameras, and approx 2 hours for ARRI ALEXA. Digital Power Info PB-R160S has the innovative 8-LED power indicators. When free or charging, the LEDs will indicate current capacity percentage, and when battery is discharging, the LEDs will display the remaining running time at the current discharging power, accurate to 15 minutes. Meanwhile, the battery pack adopts intelligent SMBUS that compatible with both SONY and RED camera info system, and can display remaining minutes on camera viewfinder. Specifications: Dimensions: 162 x 101 x 53mm Weight: 1,08 kg Max Output: 150 W

Tiny V-mount battery, Pocket fit 98Wh/6.8Ah fly-friendly capacity 150W/12A constant high load 1x D-tap output & charging input 1x USB 5V/2A output 5-step LED power indicator Power info for both SONY & RED Wire-Free internal technic Multiple circuit protections Tiny V-mount battery Pocket fit size The brick size V-mount batteries are always too big and heavy for field shootings, especially the handheld stabi- lizers, focus puller monitor, portable LED panel, or small cameras.PB-M98S Pocket V-mount battery is designed for the above applications!It’s only a DV battery size, with high capacity cells and still reaches 98Wh, and without any compromise on the DC sockets. 98Wh Fly Friendly 150W/12A constant high load PB-M98S consists of 8pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.8Ah high capacity. You can take this battery in carry-on luggage to board airplane.The constant load is as high as 150W, 12A, applicable for high power devices. Built-in D-tap and USB The pocket size PB-M98S still has D-tap and USB sockets built-in. The D-tap socket has 100W/8A load, and support charging input by SWIT PC-U130B2 dual D-tap charger.The USB socket outputs 5V/2A for smart phone fast charging. 5-LED Power Indicator Low battery warning PB-M98S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will flash automatically to remind changing battery. 3A Fast Charging PB-M98S can be charged by all standard V-mount chargers and D-tap chargers. Max charging current is 3A.The following chargers are recommended:1. S-3822S, Portable 2-ch Simultaneous ChargerCharge 2x PB-M98S: Approx. 3 hours2. PC-U130B2, Ultra-Portable Dual D-tap head chargerCharge 1x PB-M98S: Approx. 3 hoursCharge 2x PB-M98S: Approx. 5 hours and 15 minutes Wire-Free Internal Tech PB-M98S has innovative “Wire-Free” internal technic. All the cells, D-tap, USB, power indicator devices are directly soldered onto PCB, no connecting wires, to

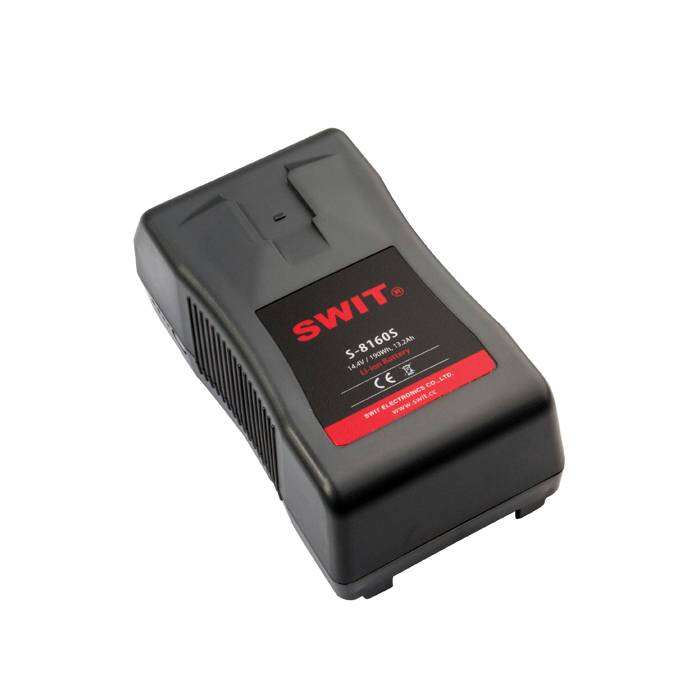

SWIT S-8160S Li-ion battery, 14.4 V, 190Wh large capacity D-tap output socket 4-level LED power indicator V-mount connection Multiple circuit protections S-8160S is the standard SONY V-mount connection and adopts a metal V-wedge that ensures reliable mounting. A D-tap DC output socket is equipped on the top side of S-8160S Battery for 14.4 VDC connection, such as on-camera lights, monitors, wireless transmitter, etc. The Maximum Power from D-tap is 100W, 8A. On the side of the battery, 4-level LED power indicators give a quick view of the remaining battery capacity.

Li-ion battery pack of 7.2V nominal voltage Comparable to Canon BP series DV battery 47Wh / 6.6Ah capacity Multiple circuit protections Canon BP series Replacement battery S-8945 is the replacement battery for Canon BP series BP-945/BP-970G, compatible with Canon XF100/105/300/305, XH-A1, XL-H1, etc. 47Wh / 6.6Ah Capacity With 7.2V nominal voltage, the S-8945 has 47Wh / 6.6Ah capacity, and can run approx 5 hour on Canon XF305 camcorder when LCD monitor is on. Easy Charging The S-8945 can be charged on SWIT Dual channel charger S-3602C. It takes about 4 hours and 30 minutes to charge from empty to 100%. Note:S-8945 does not applicable on Canon C-100 camera.

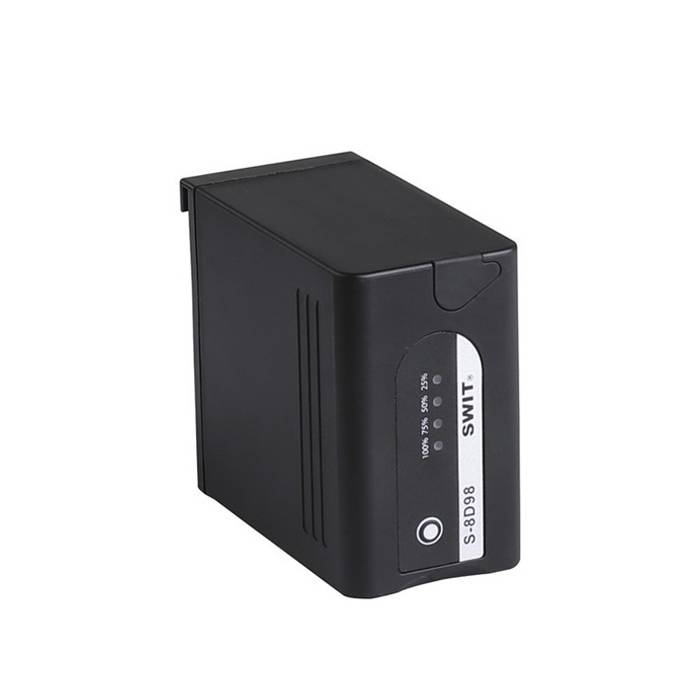

Li-ion battery of 7.2V nominal voltage For Panasonic AU-EVA1, AG-DVX200, etc Comparable to Panasonic VW-VBD58 Comparable to Panasonic AG-VBR59 Can be charged by Panasonic DE-A88 Can be charged by SWIT S-3602D 70Wh / 9800mAh capacity 4-level LED power indicator 7.2V Pole-tap DC output 5V/1A USB charging output Multiple circuit protections Panasonic EVA1,DVX200 Compatible Similar battery for Panasonic VW-VBD58/AG-VBR59 S-8D98 is the replacement battery for Panaso- nic VW-VBD58 or AG-VBR59, compatible with Panasonic AU-EVA1, AG-DVX200 and AJ-PX- 270/285, etc. 70Wh/9800mAh Capacity With 7.2V nominal voltage, the S-8D98 has 70Wh / 9800mAh capacity, and can run more than 3 hours on AU-EVA1 camcorder. Build-in Pole-tap DC Socket For DC output or Charging input A 5.5/2.1mm pole-tap DC output socket is equipped on the S-8D98 battery, for DC 7.2V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the pole-tap socket, and get power simultaneously with camera.The Max power from the pole-tap is 30W, 4A. Build-in 5V/1A USB Socket Use S-8D98 as Power Station to your cell phone. It’s rather a fantastic function to have a USB socket on the DV battery!Connect your smart phone or pad to the USB socket, press the “Check” button, and then the S-8D98 starts to output 5V/1A power to charge your devices. 4-level LED Power Indicator The S-8D98 battery has the 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using. Easy Charging The S-8D98 can be charged on Panasonic original charger DE-A88, and SWIT also provides the Dual channel charger S-3602D or 4-ch charger LC-D421 for S-8D98, will take about 6 hours to charge from empty to 100%.
